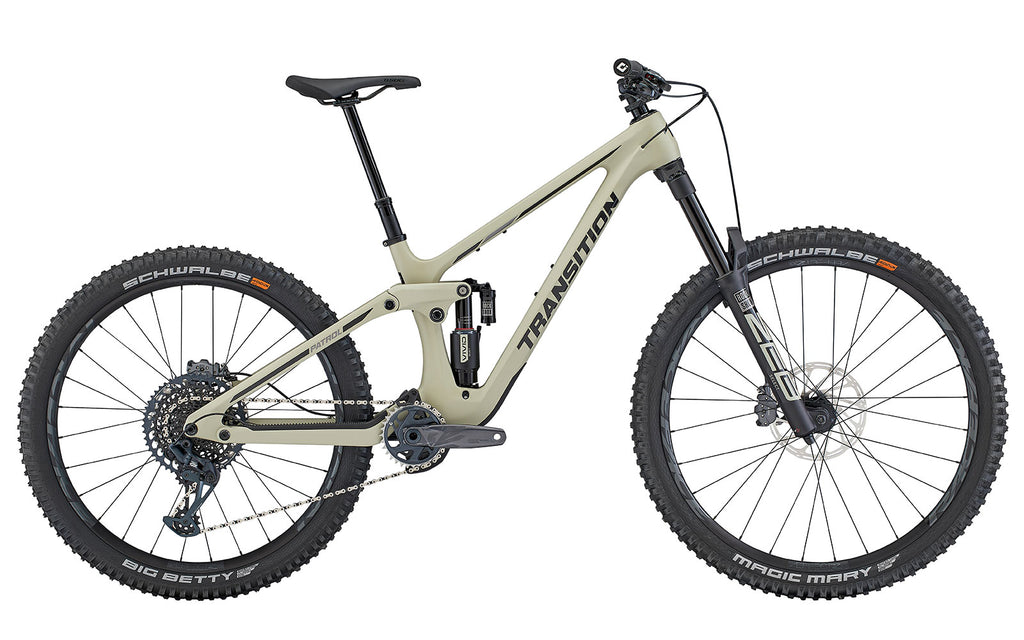

Transition Patrol Carbon GX Beachwood

Wheel Size

27.5" (650b)

29"

Other: Mullet

Frame Material

Carbon Fiber

Frame Material Details

EPS-molded Toray fiber front and rear triangles; molded chainstay, seatstay, and down tube protection

Rear Travel

160mm

Rear Shock

RockShox Vivid Select, trunnion mount, 205mm length x 60mm stroke

Fork

RockShox ZEB Select, 38mm stanchions

Fork Travel

160mm

Head Tube Diameter

Straight, 56mm

Headset

FSA No.55R/57, ZS56 upper/lower

Handlebar

ANVL Mandrel Alloy, 800mm width, 35mm clamp diameter

Rise: 20mm (SM), 30mm (MD), 40mm (LG/XL)

Stem

ANVL Swage, 40mm length, 35mm bar clamp

Grips

ODI Elite Flow, lock-on

Brakes

SRAM Maven Bronze, 4-piston, SRAM CenterLine 200mm rotors

Brake Levers

SRAM Maven Bronze Stealth, tool-free reach adjust

Drivetrain

1x

Shifters

SRAM GX Eagle, 12-speed

Front Derailleur

None

Rear Derailleur

SRAM GX Eagle, 12-speed

ISCG Tabs

ISCG05

Chainguide

OneUp upper slider with bashguard

Cranks

SRAM GX Eagle Alloy DUB, 165mm length

Chainrings

SRAM GX Eagle, 32 tooth

Bottom Bracket

SRAM DUB, 73mm English/BSA threaded

Pedals

None

Chain

SRAM GX Eagle, 12-speed

Cassette

SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth

Rims

Race Face Aeffect R, 28 hole

Hubs

Race Face Trace, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with XD driver

Spokes

Race Face, 2.0/1.7/2.0 butted

Tires

Front: Schwalbe Magic Mary, Super Trail casing, Addix Soft compound, 29" x 2.4"

Rear: Schwalbe Big Betty, Super Trail casing, Addix Soft compound, 27.5" x 2.4"

Saddle

SDG Bel-Air V3

Seatpost

OneUp dropper

Drop: 150mm (SM), 180mm (MD), 210mm (LG/XL)

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt, 37.0mm

Rear Dropout / Hub Dimensions

12mm x 148mm (Boost)

Max. Tire Size

27.5" x 2.6"

Bottle Cage Mounts

One inside front triangle, plus accessory mounts under top tube

Colors

Beachwood, Blue Lagoon

Warranty

Lifetime frame
