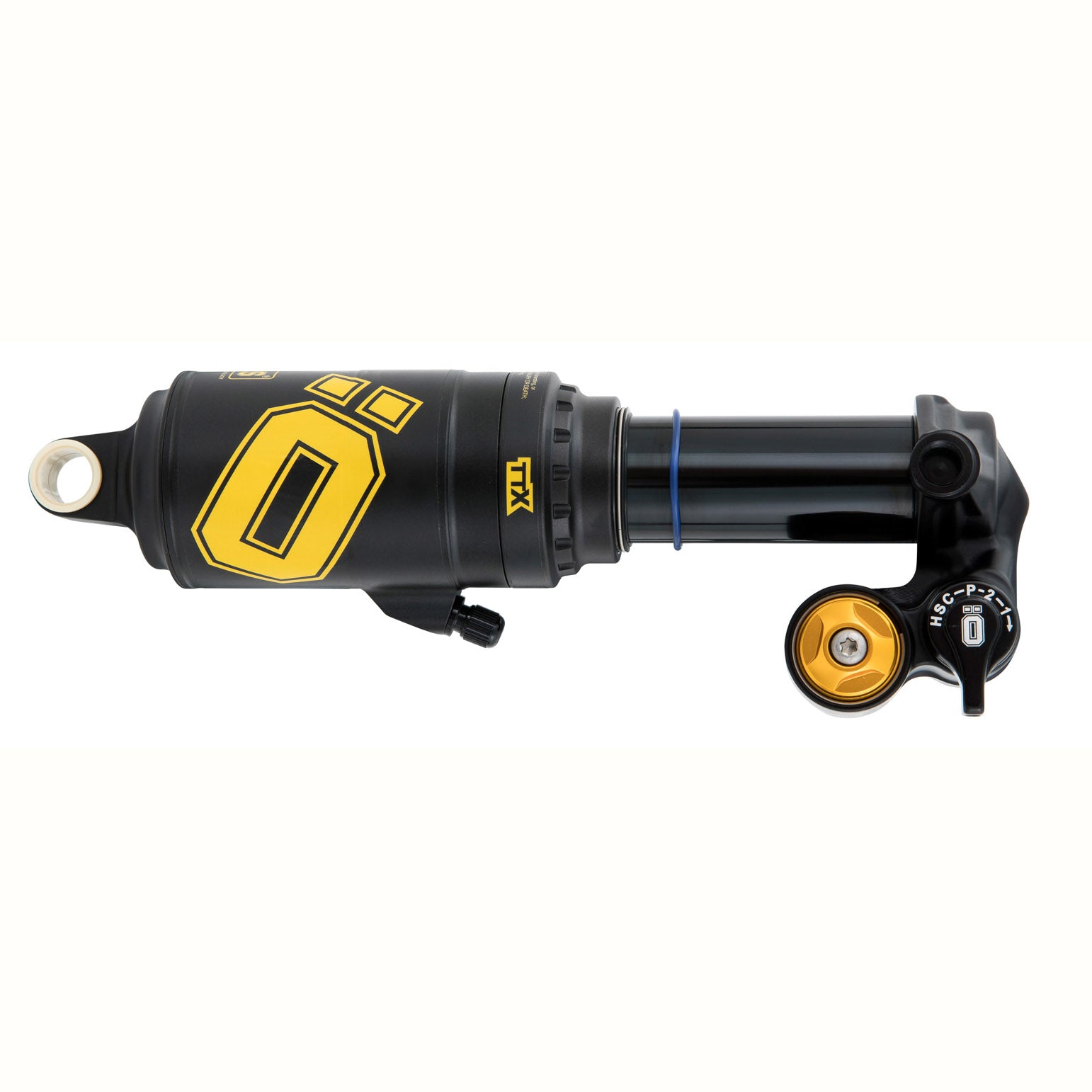

Ohlins TTX2Air Trunnion Shock 50/52.5/55 x 185mm

Ohlins TTX2Air Trunnion Shock 50/52.5/55 x 185mm

Vendor: Ohlins

Type: Rear Shocks

$745.00
$745.00 $745.00
Shipping calculated at checkout.

Out of stock

Ohlins TTX2Air Trunnion Shock 50/52.5/55 x 185mm

Ohlins TTX2Air Trunnion Shock 50/52.5/55 x 185mm

$745.00
$745.00 $745.00

Description

  • TTX2 refers to two air chambers meaning greater air volume. Provides a more linear spring rate
  • Trunnion mount: the linkage bolts directly to the sides of the cylinder head
  • TTX Twin tube design for consistent damping performance on all types of terrain
  • Extra bushing overlap for improved side load management
  • Specific wiper seal and air sleeve lubrication reduce friction
  • External rebound, low-speed and high-speed compression adjustment
  • Climb mode to reduce suspension movements during climbs
  • Includes (2) air spring volume spacers to reduce travel -2.5mm or -5mm
  • Mounting hardware sold separately (spherical bearings reduce friction on the shock during side loads for improved small bump sensitivity, optional on widths up to 22mm)
    • TECH SPECS
    model TTX2 Air
    stroke 50/52.5/55mm
    eye-eye 185mm (trunnion)
