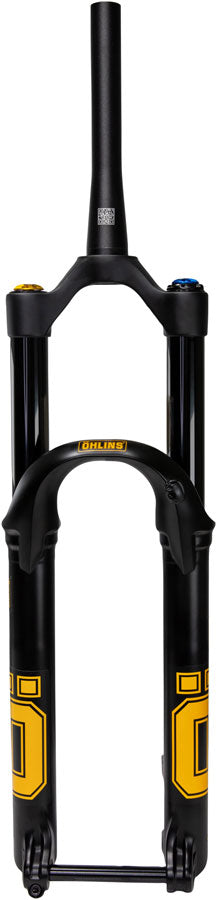

Ohlins RXF36 m.3 Suspension Fork - 29" 160mm 15mm x 110mm 44mm Offset TTX18 Damper Dual Adjust Air Spring Gloss BLK

Ohlins RXF36 m.3 Suspension Fork - 29" 160mm 15mm x 110mm 44mm Offset TTX18 Damper Dual Adjust Air Spring Gloss BLK

Ohlins RXF36 m.3 Suspension Fork - 29" 160mm 15mm x 110mm 44mm Offset TTX18 Damper Dual Adjust Air Spring Gloss BLK

Vendor: Ohlins

Type: Suspension Fork

$1,369.50
$1,369.50 $1,369.50
Shipping calculated at checkout.

Available in stock

Expected Ship Date: Tue Dec 16
Ohlins RXF36 m.3 Suspension Fork - 29" 160mm 15mm x 110mm 44mm Offset TTX18 Damper Dual Adjust Air Spring Gloss BLK

Ohlins RXF36 m.3 Suspension Fork - 29" 160mm 15mm x 110mm 44mm Offset TTX18 Damper Dual Adjust Air Spring Gloss BLK

$1,369.50
$1,369.50 $1,369.50

Description

The RXF36 m.3 features an all-new chassis built around the race-proven TTX18 damper cartridge. This lightweight and highly progressive fork is fully optimized for demanding next-level trail riding performance. The Ohlins race-winning TTX18 damping technology from the DH38 Race Fork has been adapted to deliver its renowned top-tier traction and control on the most demanding trails. The updated settings and reduced chassis friction offers improved sensitivity for greater traction and comfort to conquer any trail~With the new chassis the fork delivers ultra-sensitive tracking over small bumps while maintaining Ohlins' signature precise steering and predictable handling—no matter how long or hard it's pushed.
  • RXF36 m.3 features increased internal bushing overlap and an optimized configuration for 29” wheels
  • Race-proven adjustment range is specifically designed for tough trails and provides 16 clicks of low-speed compression 3 clicks of high-speed compression and 16 clicks of rebound adjustment
  • Features Ohlins' floating axle design for minimal friction and weighs 2050 g (with bolts and axle)
  • The retuned twin piston three chamber air-spring system allows you to completely dial-in the level of progression—from the initial movement right through to the bottom out
  • Air spring is cartridge-based allowing for easy swaps between coil and air if desired (coil cartridge sold separately)
  • New surface treatment on the 36mm stanchions lowers the friction boosts small bump sensitivity and overall ride smoothness
  • Updated lowers feature a gloss black finish and bold new graphics ensuring riders can feel and see the next level of performance every time they hit the trail or park
  • 15mm x 110mm boost floating thru-axle axle design to minimize friction
  • eMTB approved
    Steerer Type Tapered
    Lockout Switch Crown
    Brake Type Post Mount 180
    Negative Spring Air
    Travel (mm) 160
    Offset 44
    Axle to Crown Length 573
    Front Axle 15mm Thru x 110mm
    Maximum Tire Width 66
    S.H.I.S. Stem Clamp Diameter 28.6
    Color Gloss Black
    Crown Race 40
    Weight 2050
    Wheel Size 29"
    External Adjustments Rebound Damping
    Defined Color Black
    Positive Spring Air
    Stanchion Diameter 36
