Description

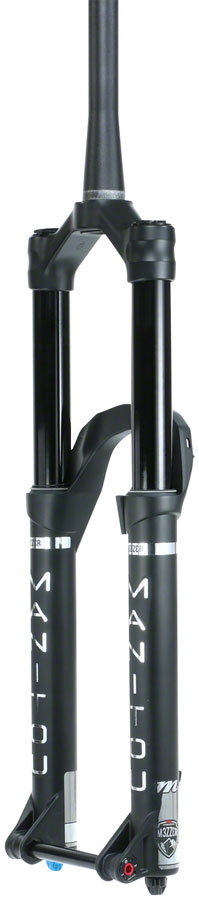

Manitou Mezzer Expert Suspension Fork - 27.5" 180 mm 15 x 110 mm 37 mm Offset Black. Loaded with unprecedented features Mezzer gives you the handling and control you need for the ultimate enduro ride. Built around 37mm stanchions and a Reverse-Arch lower leg design with the Hexlock SL2 axle Mezzer is the stiffest chassis in its category.37mm stanchions Reverse-Arch design and Hexlock SL2 axle for the ultimate stiffness
IVA Air Volume Adjustability
VTT Damper w/ 6-position compression and rebound adjustability
140mm to 180mm internally adjustable travel in 10mm increments (travel spacers included)
Integrated flexible fender can be installed/removed by three small screws threaded into the arch of the fork
- TECH SPECS
| Axle to Crown Length | 564 |
| Brake Type | Post Mount 180 |
| Color | Black |
| Crown Race | 40 |
| Defined Color | Black |
| Designed for ebike | Yes |
| External Adjustments | High Speed Compression Damping |
| External Adjustments | Rebound Damping |
| Front Axle | 15mm Thru x 110mm |
| Lockout Switch | Crown |
| Maximum Tire Width | 74 |
| Negative Spring | Air |
| Offset | 37 |
| Positive Spring | Air |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Stanchion Diameter | 37 |
| Steerer Tube Length (mm) | 251 |
| Steerer Type | Tapered |
| Travel (mm) | 180 |
| Wheel Size | 27.5" |
