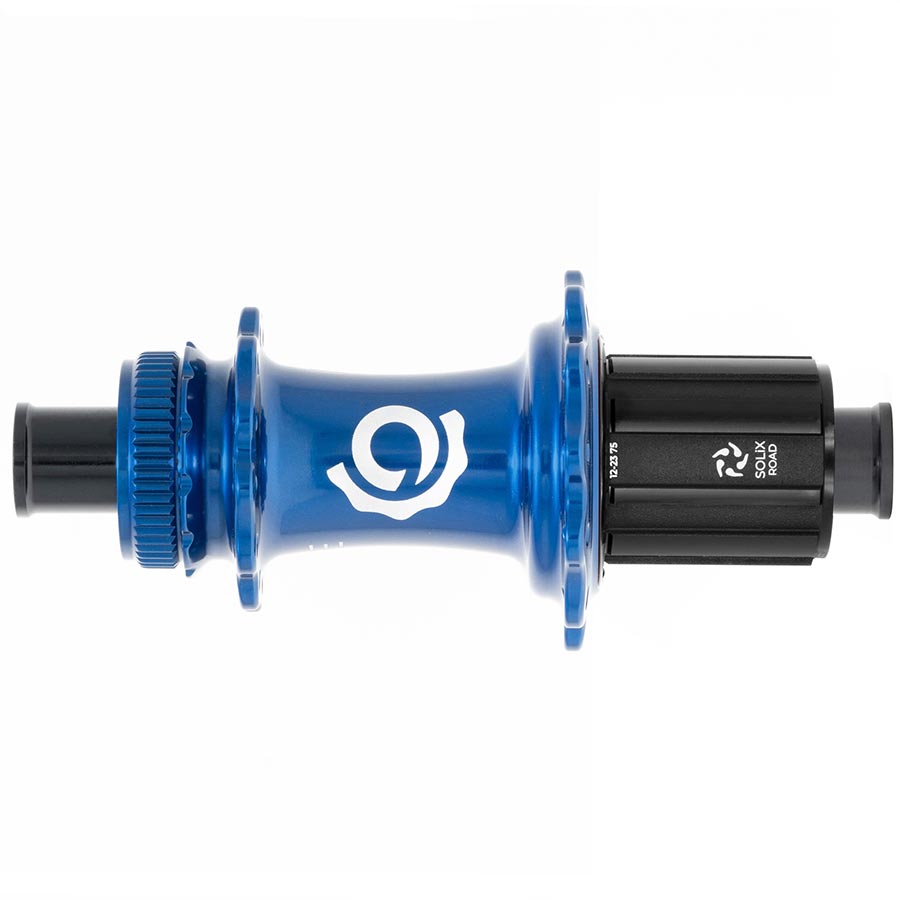

SOLiX is based on the principles refined from years of experience in the off-road world, yet fine-tuned for mechanical efficiency, competitive weight, and enhanced longevity. A continuously-phased five pawl freehub offers 605 points of contact translating to an ultra-fine .59° engagement. Reduced pawl rotation, decreased pawl spring pressure, optimized drive ring diameter, and updated contact seal layout bring resistance and freewheeling noise to a minimum. Optimized for j-bend spokes Scalloped flange design distributes stress more effectively than a simple round shape more effectively Optimized flange width for enhanced bracing angles
Hub Drilling |
28H |
Position |
Rear |
Rotor Mount |
Center Lock |
Freehub Body |
Shimano HG 11 |
Hub Spoke Type |
J-bend |
Hub Weight |
223g |
Axle Type |
12mm TA |
Primary Color |
Blue |
Hub Spacing |
142mm |
