Description

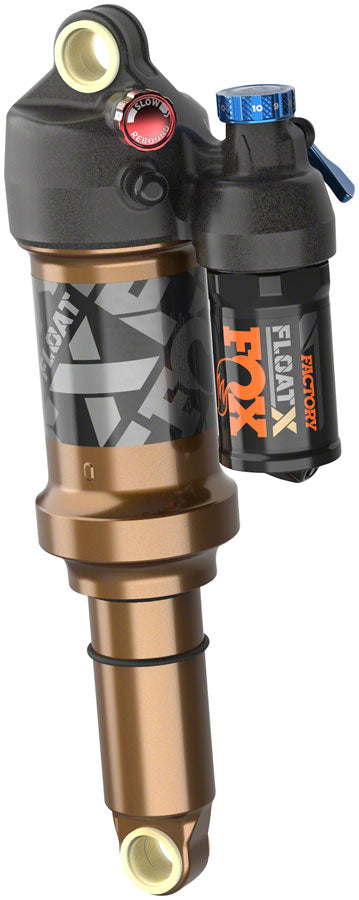

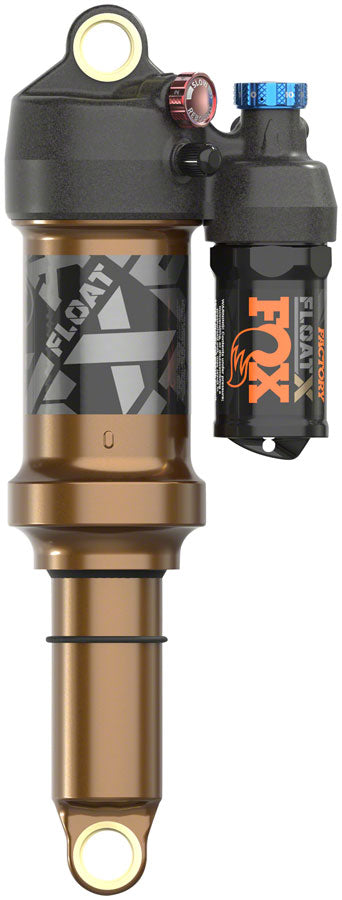

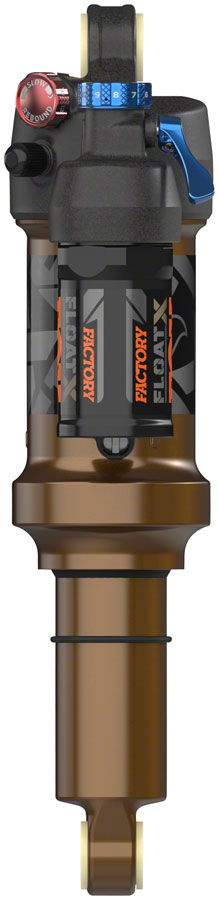

FOX FLOAT X Factory Rear Shock - Metric 230 x 57.5 mm EVOL LV 2-Position Lever Kashima Coat. Factory says it all – feature-packed and designed to exceed the demands of Factory-level riders but ready for everyone.Kashima Coat
All-new chassis and damper
High-flow main piston air seal package
Volume spacers with smaller increments and MCU bottom out bumper
Numbered tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
Independent firm mode circuit – Clockable 2 position adjuster Increased rebound adjuster range (over DPX2)
Optimized reservoir lengths per shock size
Hydraulic top out feature Reduced damper noise
Bearing hardware compatible both sides Air valve location offers improved frame fitment and pump access
- TECH SPECS
Stroke (mm) | 57.5 |
Metric | Yes |
Lockout Switch | Shock Mounted Switch |
Eyelet Diameter (mm) | 12.7 |
External Adjustments | Low Speed Compression Damping |
External Adjustments | Rebound Damping |
Positive Spring | Air |
Eye to eye length (mm) | 230 |
