Description

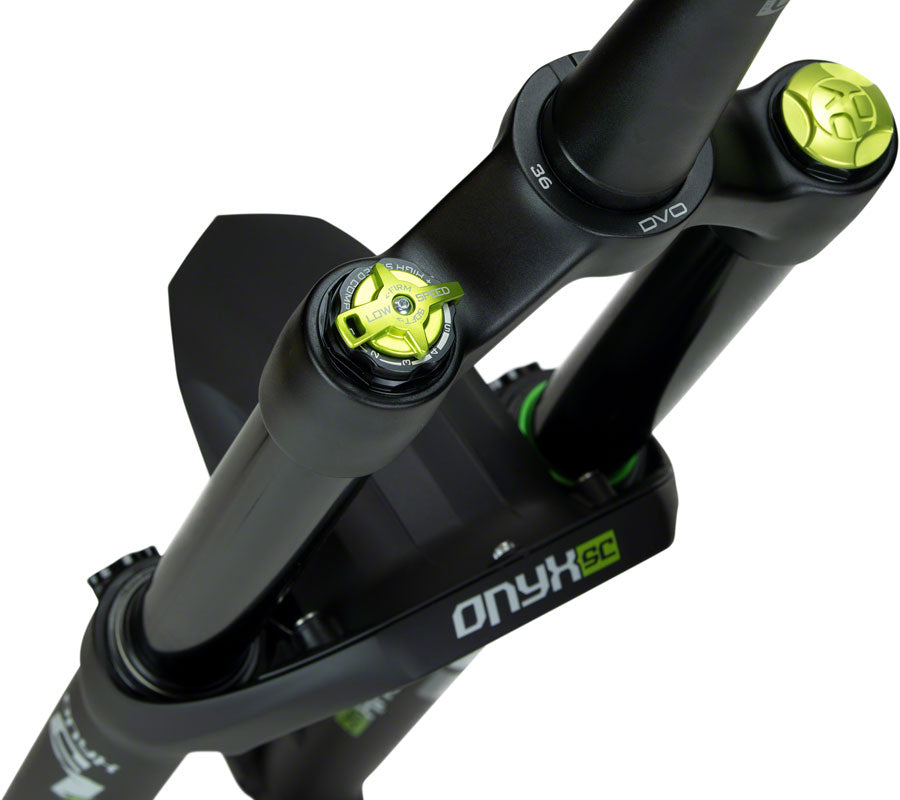

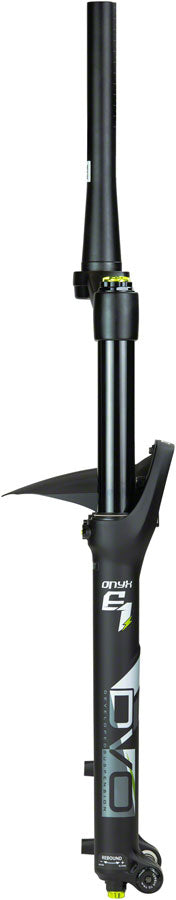

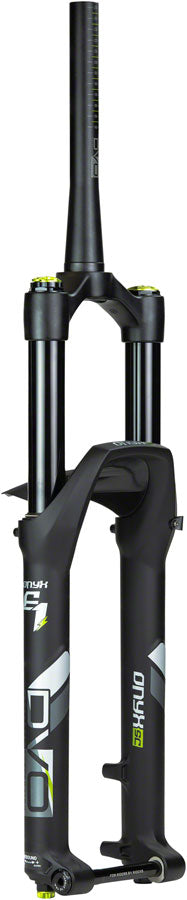

DVO Onyx SC-E1 Suspension Fork - 27.5" 160mm Travel 42mm Offset 15 x 110mm Black. The Onyx SC-E1 series is based on the solid foundation of the D1 platform but with an approach to accommodate the use of E-MTBΓÇÖs and their luxury of ripping both up and down the trail. Due to the added weight and mileage from an E-MTB the SC-E1 features increased bushing overlap within the casting; providing structural stability and longevity over a longer period of time. The fork utilizes the same D1 damper helping to maintain a lighter compression tune and supple ride that keeps riders fresh until the battery runs out.67% More Bushing Overlap compared to the SC-D1
Six clicks of low speed compression give quick access to firming up the fork for pedaling opening for descending and mid settings for everything in between
Over thirty clicks of High Speed Compression give precise control for support on big hits
Shim stack controlled rebound that is 100% dynamic; meaning the rebound is controlled based on the speed at which oil flows through the system
Exclusive OTT (Off The Top) adjustment feature allows riders to perfectly fine tune how the initial stroke feels without any mid/end stoke compromise
- TECH SPECS
Steerer Type | Tapered |
Defined Color | Black |
Positive Spring | Air |
Wheel Size | 27.5" |
Offset | 42 |
External Adjustments | High Speed Compression Damping |
External Adjustments | Low Speed Compression Damping |
External Adjustments | Rebound Damping |
Color | Black |
Designed for ebike | Yes |
Lockout Switch | Crown |
Negative Spring | Air |
Travel (mm) | 160 |
S.H.I.S. Stem Clamp Diameter | 28.6 |
Steerer Tube Length (mm) | 255 |
Weight | 2200 |
Stanchion Diameter | 36 |
Axle to Crown Length | 575 |
Crown Race | 40 |
Front Axle | 15mm Thru x 110mm |
Brake Type | Post Mount 160 |
