Description

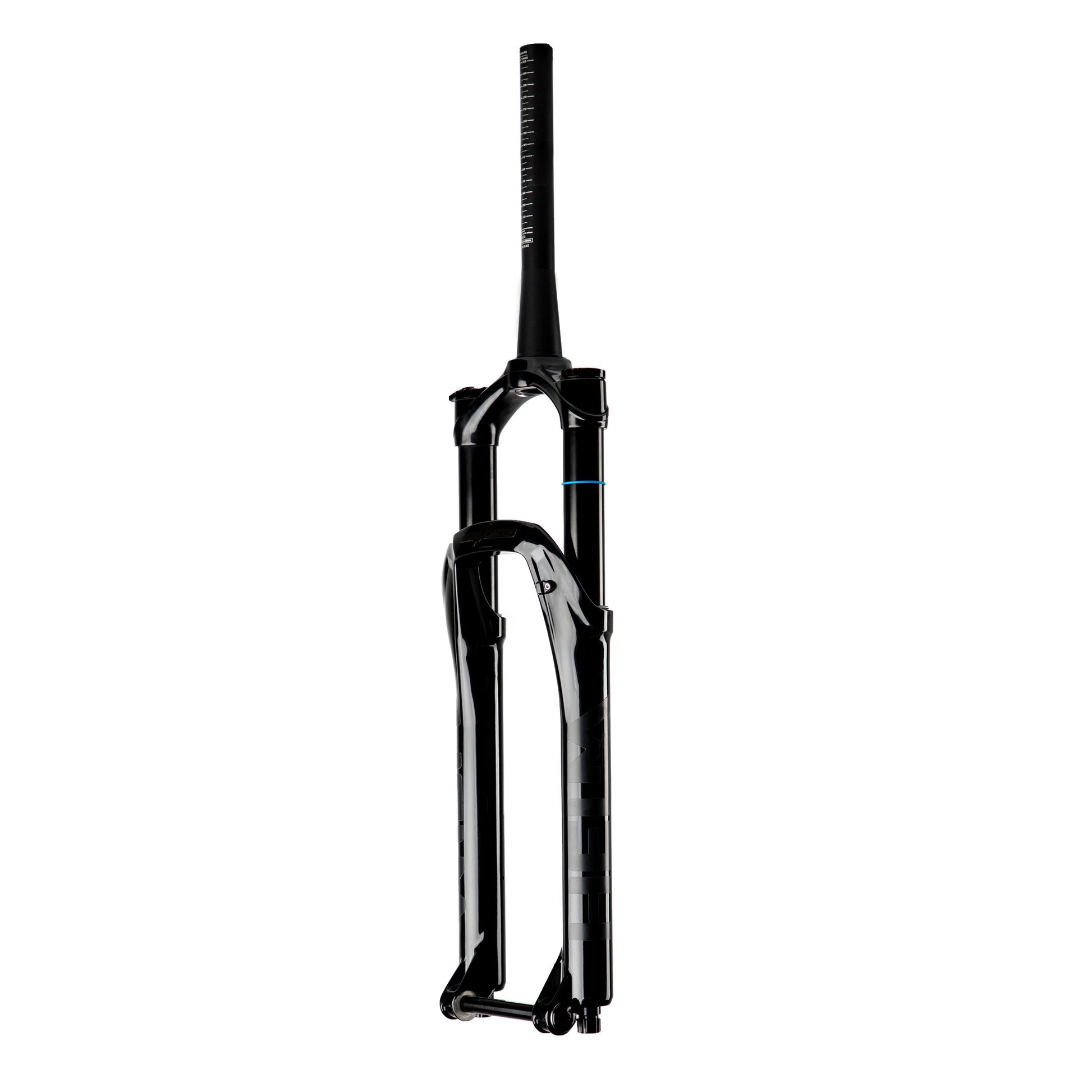

Cane Creek Helm MKII Air 29 Suspension Fork - 29" 160 mm 15 x 110 mm 44 mm Offset Gloss Black. The Cane Creek Helm MKII Air Suspension Fork features an upgraded damper design for increased support and control and a redesigned air spring that allows for increased air volume for better traction and suppleness.Compression and midvalve circuit offer increased support and control
SKF oil seal head cartridge and wiper seals are low friction
The redesigned air spring offers increased air volume for better traction and suppleness
The threadless air seal head allows for easier travel change
Damping features include: high speed compression low speed compression and low speed rebound
Adjustment options include: high speed compression (10 positions) low speed compression (17 positions) Low speed rebound (10 positions) independent positive air spring independent negative air spring and an indexed travel system (8 positions)
Double-Air spring system: high volume positive and negative air springs
"D-Loc" 15mm bolt-on thru axle
- TECH SPECS
| Steerer Type | Tapered |
| Brake Type | Post Mount 180 |
| Negative Spring | Air |
| Travel (mm) | 160 |
| Offset | 44 |
| Axle to Crown Length | 573 |
| Front Axle | 15mm Thru x 110mm |
| Maximum Tire Width | 65 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Gloss Black |
| Crown Race | 40 |
| Weight | 2080 |
| Wheel Size | 29" |
| External Adjustments | High Speed Compression Damping |
| External Adjustments | Low Speed Compression Damping |
| External Adjustments | Rebound Damping |
| Defined Color | Black |
| Positive Spring | Air |
| Stanchion Diameter | 35 |
| Steerer Tube Length (mm) | 265 |
