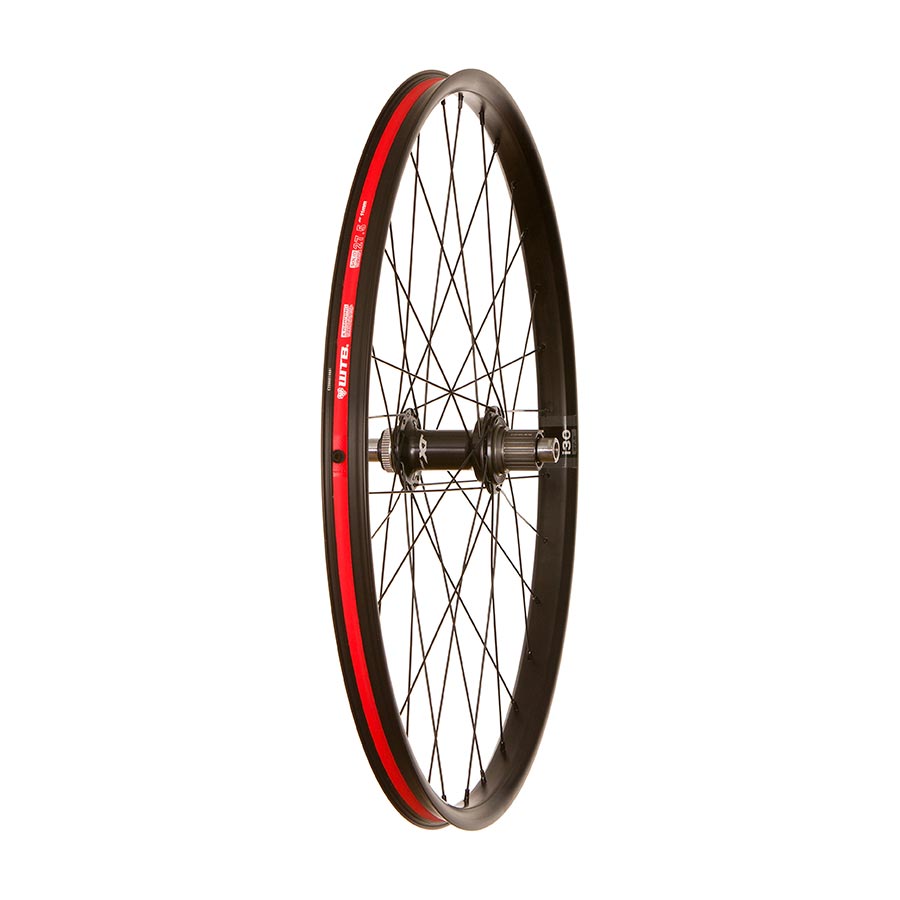

Rims: WTB HTZ i30 27.5"
ETRTO 584-30
Inner width: 30mm
6061 series aluminum
Asymetric and angled spoke hole drilling distributes spoke tension more evenly
Reinforced I-Beam profile
Strong sleeved joint
Drilled for Presta valve
TCS 2.0 Tubeless System compatible
Solid Strip included
Tubeless valve included
32 holes
Front hub: Shimano XT HB-M8110-B Boost
15x110mm (Axle not included)
Center Lock (6-Bolt adapter included)
Polished angular contact bearings
Contact sealed hub
Rear hubs options: Shimano XT FH-M8010-B (Boost, HG) / FH-M8110-B (Boost, MS) / FH-M8130-B (SuperBoost, MS)
Center Lock (6-Bolt adapter included)
Quick Engagement Freehub, 36 Points of Contact, 10 deg. engagement
HG compatible Shimano 11spd and Sram NX / SX splined 12spd (10spd and below needs spacer)
MS compatible 12 Spd Shimano Micro Spline
Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black), Polyax Nipples (Black)
| Hub Model |
Shimano XT FH-M8130-B |
| Position |
Rear |
| Wheel Tire Type |
Tubeless Compatible |
| Hub Spacing |
157mm |
| Wheel Diameter/ISO |
27.5 / 584 |
| Axle Type |
12mm TA |
| Rim Internal Width |
30mm |
| Spoke Type |
Sapim Race |
| Rim Construction |
Double wall Sleeved |
| Freehub Body |
Shimano Micro Spline |
| Rim Color |
Black |
| Rim Material |
Aluminum |
| Rim Model |
WTB HTZ i30 |
| Rim inner width range |
28-34.9mm |
| Skewers Included |
No |
| Wheel-Brake Comp. |
Disc Center Lock / IS 6-Bolt |
| Rim Drilling |
32 |
| Valve |
Presta |
