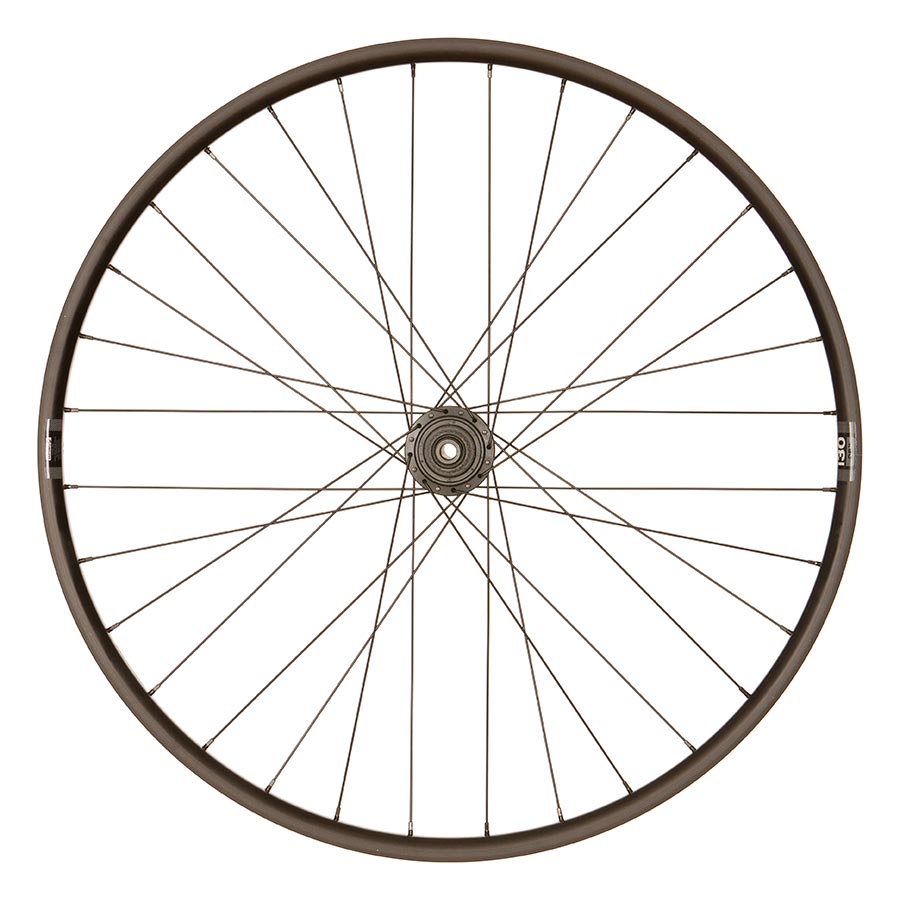

Rims: WTB HTZ i30 29"
ETRTO 622-30
Inner width: 30mm
Asymetric and angled spoke hole drilling
Reinforced I-Beam profile
Strong sleeved joint
Drilled for Presta valve
TCS 2.0 Tubeless compatible
Solid Strip incl.
32 holes
Front hub (-01): Shimano HB-TC500-15-B
15x110mm
Center Lock (6-Bolt adapter incl.)
Sealed cartridge bearings
Labyrinth & Contact seal
Rear hub (-02): Shimano FH-TC600-HM-B
12x148mm
Center Lock (6-Bolt adapter incl.)
Sealed cartridge bearings
Labyrinth & Contact seal
Quick Engagement Pawl & Ratchet system
Compatible with 8/9/10/11 speed MTB
Rear hub (-03): Shimano FH-TC600-MS-B
12x148mm
Center Lock (6-Bolt adapter incl.)
Sealed cartridge bearings
Labyrinth & Contact seal
Quick Engagement Pawl & Ratchet system
Compatible with Microspline 12 speed
Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black), 14mm Brass Polyax Nipples (Black)
| Position |
Rear |
| Wheel Diameter/ISO |
29 / 622 |
| Wheel Tire Type |
Tubeless Compatible |
| Depth |
19mm |
| Rim Drilling |
32 |
| Valve |
Presta |
| Rim inner width range |
28-34.9mm |
| Skewers Included |
No |
| Wheel-Brake Comp. |
Disc Center Lock / IS 6-Bolt |
| Rim Color |
Black |
| Rim External Width |
34mm |
| Freehub Body |
Shimano Micro Spline |
| Hub Spacing |
148mm |
| Rim Material |
Aluminum |
| Rim Model |
WTB HTZ i30 |
| Axle Type |
12mm TA |
| Hub Model |
FH-TC600-MS-B |
| Rim Construction |
Double wall Sleeved |
| Rim Internal Width |
30mm |
| Spoke Type |
Sapim Race |
