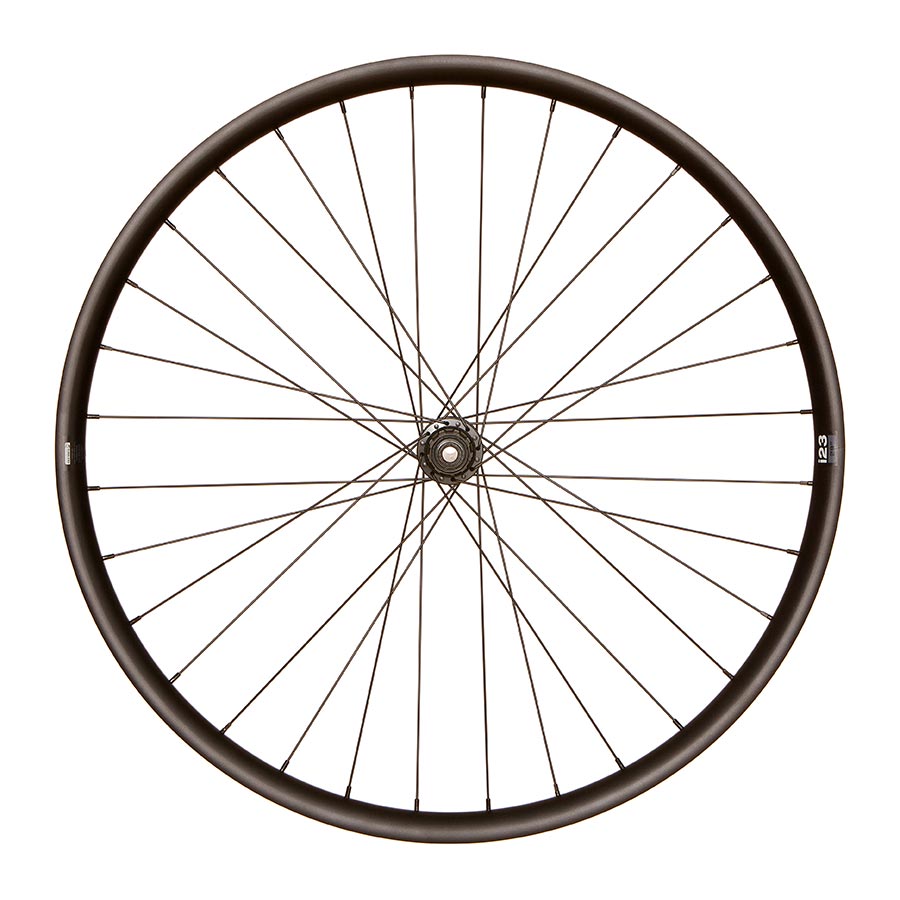

Rims: WTB EZR i23 700C
ETRTO 622-23
Inner width: 23mm
Made from 6069 series Aluminum alloy
Asymetric and angled spoke hole drilling distributes spoke tension more evenly
Stronger and lighter rim using a sleeved joint
Disc Brake Only
Drilled for Presta valve
TCS 2.0 Tubeless System compatible
Solid Strip (included)
32 holes
Front hub: Shimano 105 HB-R7070
12x100mm E-THRU (Axle not included)
Center Lock Disc Mount
Polished angular contact bearings with Internal Grease Sleeve
Contact sealed hub
Rear hub: Shimano 105 FH-R7070
12x142mm E-THRU (Axle not included)
Center Lock Disc Mount
Polished angular contact bearings with Internal Grease Sleeve
Contact sealed hub and freehub body
Compatible with 11 speed Road (10 speed compatibility requires 1.85mm spacer, not included)
Assembled in North America by experienced wheelbuilders with Sapim Race Butted Stainless Steel spokes (Black) and 14mm Brass Polyax Nipples (Black)
Axle Type |
12mm TA |
Freehub Body |
Shimano HG 11 |
Rim Internal Width |
23mm |
Spoke Type |
Sapim Race |
Skewers Included |
No |
Wheel Tire Type |
Tubeless Compatible |
Rim Drilling |
32 |
Rim Model |
WTB EZR i23 |
Valve |
Presta |
Hub Model |
Shimano 105 FH-R7070 |
Rim Construction |
Double wall Sleeved |
Rim inner width range |
22-27.9mm |
Rim Material |
Aluminum |
Wheel-Brake Comp. |
Disc Center Lock |
Rim Color |
Black |
Position |
Rear |
Wheel Diameter/ISO |
700C / 622 |
Hub Spacing |
142mm |
