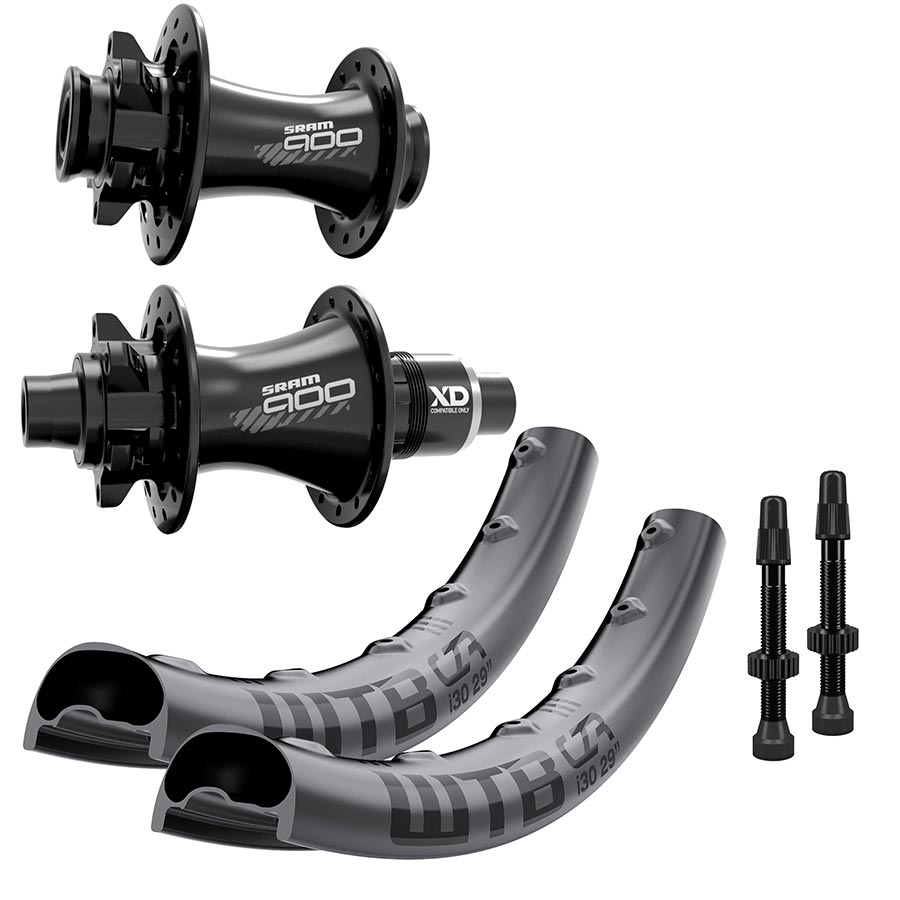

Rims: WTB CZR i30 Carbon 29"
ETRTO 622-30
Inner width: 30mm
Made from Torayca T700 UD carbon fiber, striking a fine balance between stiffness and compliance
Asymetric and angled spoke hole drilling distributes spoke tension more evenly
Externally reinforced spoke bed
Drilled for Presta valve
TCS 2.0 Tubeless System compatible
Solid Strip (included)
32 holes
Front hub: Sram 900 Boost
15x110mm Thru-Axle (Axle not included)
6 Bolt Disc Mount
Sealed cartridge bearings
Rear hub: Sram 900 XDR Boost
12x148mm Thru-Axle (Axle not included)
6 Bolt Disc Mount
Sealed cartridge bearings
Sram Double Time 4-Pawl Ratchet Freehub, 52 Points of Contact, 6.9 degree engagement angle
Compatible with 11,12 speed XD (1.85mm spacer included)
Sold in Pair, including:
Tubeless Valve (x2)
Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black), 14mm Brass Polyax Nipples (Black)
| Hub Model |
SRAM 900 |
| Skewers Included |
No |
| Rim Drilling |
32 |
| Hub Spacing |
F: 110 R: 148 |
| Spoke Type |
Sapim Race |
| Wheel Tire Type |
Tubeless Compatible |
| Position |
Front and Rear |
| Rim Model |
WTB CZR i30 |
| Freehub Body |
SRAM XD |
| Valve |
Presta |
| Wheel-Brake Comp. |
Disc IS 6-bolt |
| Rim Color |
Black |
| Rim Construction |
Double wall |
| Rim inner width range |
28-34.9mm |
| Rim Material |
Carbon |
| Rim Internal Width |
30mm |
| Axle Type |
F: 15mm R: 12mm |
| Wheel Diameter/ISO |
29 / 622 |
