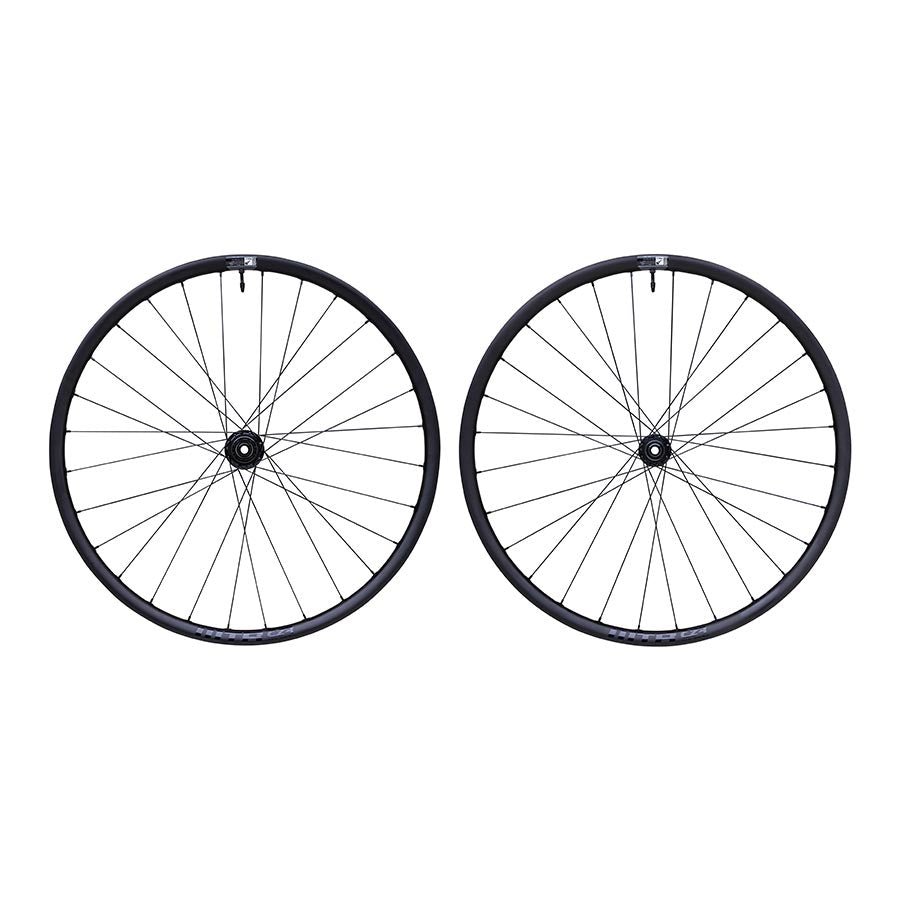

Rims: WTB CZR i23 Carbon 700C
ETRTO 622-23
Inner width: 23mm
Torayca T700 UD carbon fiber for stiffness and compliance
Asymetric and angled spoke hole drilling
Externally reinforced spoke bed
Drilled for Presta valve
TCS 2.0 Tubeless System compatible
28 holes
Front hub: Shimano HB-RS770 Ultegra series
12x100mm E-THRU (Axle not included)
Center Lock (6-Bolt adapter included)
Polished angular contact bearings
Contact sealed hub
Rear hub: Shimano FH-RS770 Ultegra series
12x142mm E-THRU (Axle not included)
Center Lock (6-Bolt adapter included)
Polished angular contact bearings
Contact sealed hub and freehub body
Compatible with 11 speed Road (10 speed compatibility requires 1.85mm spacer, not included)
Sold in Pair, including:
Tubeless Valve (x2)
Assembled in North America by experienced wheelbuilders with Sapim Race Butted Stainless Steel spokes (Black) and 14mm Brass Polyax Ni
| Freehub Body |
Shimano HG 11 |
| Position |
Front and Rear |
| Rim inner width range |
22-27.9mm |
| Hub Model |
Shimano RS770 |
| Rim Construction |
Double wall |
| Rim Drilling |
28 |
| Wheel Tire Type |
Tubeless Compatible |
| Rim Internal Width |
23mm |
| Skewers Included |
No |
| Spoke Type |
Sapim Race |
| Wheel-Brake Comp. |
Disc Center Lock / IS 6-Bolt |
| Wheel Weight |
1512g (pair) |
| Wheel Diameter/ISO |
700C / 622 |
| Rim Material |
Carbon |
| Hub Spacing |
F: 100 R: 142 |
| Rim Model |
WTB CZR i23 |
| Axle Type |
F: 12mm R: 12mm |
| Rim Color |
Black |
| Valve |
Presta |
